Principal investigator: Guillaume Baffou
L’imagerie de la phase de la lumière, et pas seulement de son intensité, relève du domaine de l’imagerie de phase quantitative (QPI) [26]. Les techniques de QPI sont traditionnellement utilisées en microscopie pour mesurer des propriétés spécifiques d’échantillons semi-transparents, sans aucun marquage.
La QPI que nous utilisons est une technique d’imagerie de front d’onde appelée Interférométrie à décalage quadrilatéral (QLSI, Quadriwave Lateral Shearing Interferometry) [16,21]. Elle a été inventée et brevetée en 2000 par Jérôme Primot (ONERA) [Appl. Optics 39, 5715 (2000)]. Elle consiste en l’utilisation d’un réseau bidimensionnel (2D) placé à une distance millimétrique d’une caméra classique. Le QLSI peut atteindre la limite de diffraction, est achromatique, et est donc compatible avec les voies d’illumination en lumière blanche des microscopes optiques en champ large.
Dispositif expérimental QLSI conçu à l’institut Fresnel.
En 2009, l’Institut Fresnel a été pionnier dans l’utilisation du QLSI en microscopie, en particulier pour l’observation de cellules vivantes en culture [Opt. Express 17, 13080 (2009)]. Par la suite, nous avons appelé l’implémentation de la QLSI en microscopie : cross-grating wavefront microscopy (CGM) [21]. Depuis lors, notre groupe a étendu les applications de la CGM en nanophotonique et en biologie. Nous avons notamment démontré la capacité de la CGM à caractériser des nanoparticules [12,14], des matériaux bidimensionnels (2D) [10], des métasurfaces [15], des profils de température à l’échelle microscopique [1—9,11,13,17], la vitesse de croissance de bactéries uniques [19], ainsi que le transport de masse dans les neurites de neurones en culture [20].

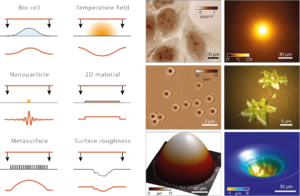

La figure ci-dessous illustre les différents objets d’intérêt qui ont été étudiés grâce à la CGM.
Différent objets imagés par CGM à l’institut Fresnel.
Nous consacrons également une grande partie de nos activités à des simulations numériques, en particulier pour réaliser des expériences in silico de toutes une gamme de microscopies de phase [18,26].
Nous utilisons actuellement de manière active la CGM pour des applications en bio-imagerie (neurones, micro-organismes) et en nanophotonique (nanoparticules, métasurfaces, matériaux 2D, biocapteurs, microfluidique). Nous partageons en général tous nos codes Matlab. En particulier, notre toolbox PhaseLAB (~100 000 lignes de code), destinée à traiter les images QLSI, est disponible sur Github.
Vidéos de cellules en culture (U2OS) obtenue par CGM.
Vidéo de neurones en culture obtenue par CGM.
Financial support:
|
|
|
References:
2025
- [27] Surface modifications induced by the laser ablation of surface-bound microparticles at low to moderate fluence level in the ultraviolet
Alexandre Beaudier, Baptiste Marthy, Charles Bouyer, Romain Parreault, Guillaume Baffou, Jerome Neauport
Optics Express , accepted (2025)
2024
- [26] Quantitative phase microscopies: accuracy comparison
P. C. Chaumet, P. Bon, G. Maire, A. Sentenac, G. Baffou
Light: Science and Applications 13, 288 (2024)
- [25] Single-shot quantitative phase-fluorescence imaging using cross-grating wavefront microscopy
B. Marthy, M. Bénéfice, G. Baffou
Scientific Report 14, 2142 (2024)
2023
- [24] Quantitative Microscale Thermometry in Droplets Loaded with Gold Nanoparticles
L. Sixdenier,* G. Baffou, C. Tribet, E. Marie
Journal of Physical Chemistry Letters 14, 11200-11207 (2023) - [23] Dry mass photometry of single bacteria using quantitative wavefront microscopy
M. Bénéfice, A. Gorlas, B. Marthy, V. Da Cunha, P. Forterre, A. Sentenac, P. C. Chaumet, G. Baffou*
Biophysical Journal 122, 3159-3172 (2023) - [22] Uniform Huygens Metasurfaces with Postfabrication Phase Pattern Recording Functionality
E. Mikheeva, R. Colom, P. Genevet*, F. Bedu, I. Ozerov, S. Khadir, G. Baffou, R. Abdeddaim, S. Enoch, and J. Lumeau*
ACS Photonics 10, 1538-1546 (2023) - [21] Wavefront microscopy using quadriwave lateral shearing interferometry: from bioimaging to nanophotonics
G. Baffou
ACS Photonics 10, 322-339 (2023)
2022
- [20] Biomass measurements of single neurites in vitro using optical wavefront microscopy
L. Durdevic, A. Resano Gines, A. Roueff, G. Blivet, G. Baffou*
Biomedical Optics Express 13, 6550-6560 (2022) - [19] Life at high temperature observed in vitro upon laser heating of gold nanoparticles
C. Molinaro, M. Bénéfice, A. Gorlas, V. Da Cunha, H. M. L. Robert, R. Catchpole, L. Gallais, P. Forterre, G. Baffou*
Nature Communications 13, 5342 (2022 - [18] Cross-grating phase microscopy (CGM): In-silico experiment (insilex) algorithm, noise and accuracy
B. Marthy, G. Baffou*
Optics Communications 521, 128577 (2022)
2021
- [17] Microscale Thermophoresis in Liquids Induced by Plasmonic Heating and Characterized by Phase and Fluorescence Microscopies
S. Shakib, B. Rogez, S. Khadir, J. Polleux, A. Würger, G. Baffou*
J Phys Chem C 125, 21533-21542 (2021) - [16] Quantitative phase microscopy using quadriwave lateral shearing interferometry (QLSI): principle, terminology, algorithm and grating shadow description
G. Baffou
J. Phys. D: Appl. Phys. 54, 294002 (2021) - [15] Metasurface optical characterization using quadriwave lateral shearing interferometry
S. Khadir,* D. Andrén, R. Verre, Q. Song, S. Monneret, P. Genevet, M. Käll, G. Baffou*
ACS Photonics 8, 603-613 (2021)
2020
- [14] Full optical characterization of single nanoparticles using quantitative phase imaging
S. Khadir,* Daniel Andrén, P. C. Chaumet, S. Monneret, N. Bonod, M. Käll, A. Sentenac, G. Baffou*
Optica 7, 243-248 (2020)
2019
- [13] Microscale Temperature Shaping Using Spatial Light Modulation on Gold Nanoparticles
L. Durdevic, H. M. L. Robert, B. Wattellier, S. Monneret, G. Baffou*
Scientific Report 9, 4644 (2019) - [12] Quantitative model of the image of a radiating dipole through a microscope
S. Khadir,* P. Chaumet, G. Baffou, A. Sentenac
Journal of the Optical Society of America A 36, 478-484 (2019)
2018
- [11] Photothermal control of heat-shock protein expression at the single cell level
H. M. L. Robert,* J. Savatier, S. Vial, J. Verghese, B. Wattelier, H. Rigneault, S. Monneret, J. Polleux,* and G. Baffou*
Small 14, 1801910 (2018)
2017
- [10] Optical imaging and characterization of graphene and other 2D materials using quantitative phase microscopy
S. Khadir,* P. Bon, D. Vignaud, E. Galopin, N. McEvoy, D. McCloskey, S. Monneret, G. Baffou*
ACS Photonics 4, 3130-3139 (2017)
2016
- [9] Light-Assisted Solvothermal Chemistry Using Plasmonic Nanoparticles
H. M. L. Robert,* F. Kundrat, E. Bermudez-Urena, H. Rigneault, S. Monneret, R. Quidant, J. Polleux, G. Baffou*
ACS Omega 1, 2-8 (2016)
2015
- [8] Quantitative study of the photothermal properties of metallic nanowire networks
A. P. Bell, J. A. Fairfield, E. K. McCarthy, S. Mills, J. J. Boland, G. Baffou, D. McCloskey*
ACS Nano 9, 5551-5558 (2015)
2014
- [7] Deterministic Temperature Shaping using Plasmonic Nanoparticle Assemblies
G. Baffou*, E. Bermúdez Ureña, P. Berto, S. Monneret, R. Quidant and H. Rigneault
Nanoscale 6, 8984-8989 (2014) - [6] Super-Heating and Micro-Bubble Generation around Plasmonic Nanoparticles
under cw Illumination
G. Baffou,* J. Polleux, H. Rigneault, S. Monneret
Journal Physical Chemisty C 118, 4890 (2014)
2013
- [5] Photo-induced heating of nanoparticle arrays
G. Baffou,* P. Berto, E. Bermúdez Ureña, R. Quidant, S. Monneret, J. Polleux, H. Rigneault
ACS Nano 7, 6478-6488 (2013) - [4] Three-dimensional temperature imaging around a gold microwire
P. Bon, N. Belaid, D. Lagrange, C. Bergaud, H. Rigneault, S. Monneret, G. Baffou*
Applied Physics Letters 102, 244103 (2013)
2012
- [3] Quantitative absorption spectroscopy of nano-objects
P. Berto,* E. Bermúdes Ureña, P. Bon, R. Quidant, H. Rigneault, G. Baffou*
Physical Review B 86, 165417 (2012) - [2] Micropatterning Thermoplasmonic Gold Nanoarrays to Manipulate Cell Adhesion
M. Zhu, G. Baffou, N. Meyerbröker, and J. Polleux*
ACS Nano 6, 7227-7233 (2012) - [1] Thermal Imaging of Nanostructures by Quantitative Optical Phase Analysis
G. Baffou,* P. Bon, J. Savatier, J. Polleux, M. Zhu, M. Merlin, H. Rigneault and S. Monneret
ACS Nano 6, 2452-2458 (2012)[1]
